Aluminium Treadplate 5052 3.0mm – 1500×3000mm

Aluminium 5-Bar Treadplate 5052 – 3.0mm – 1500×3000mm

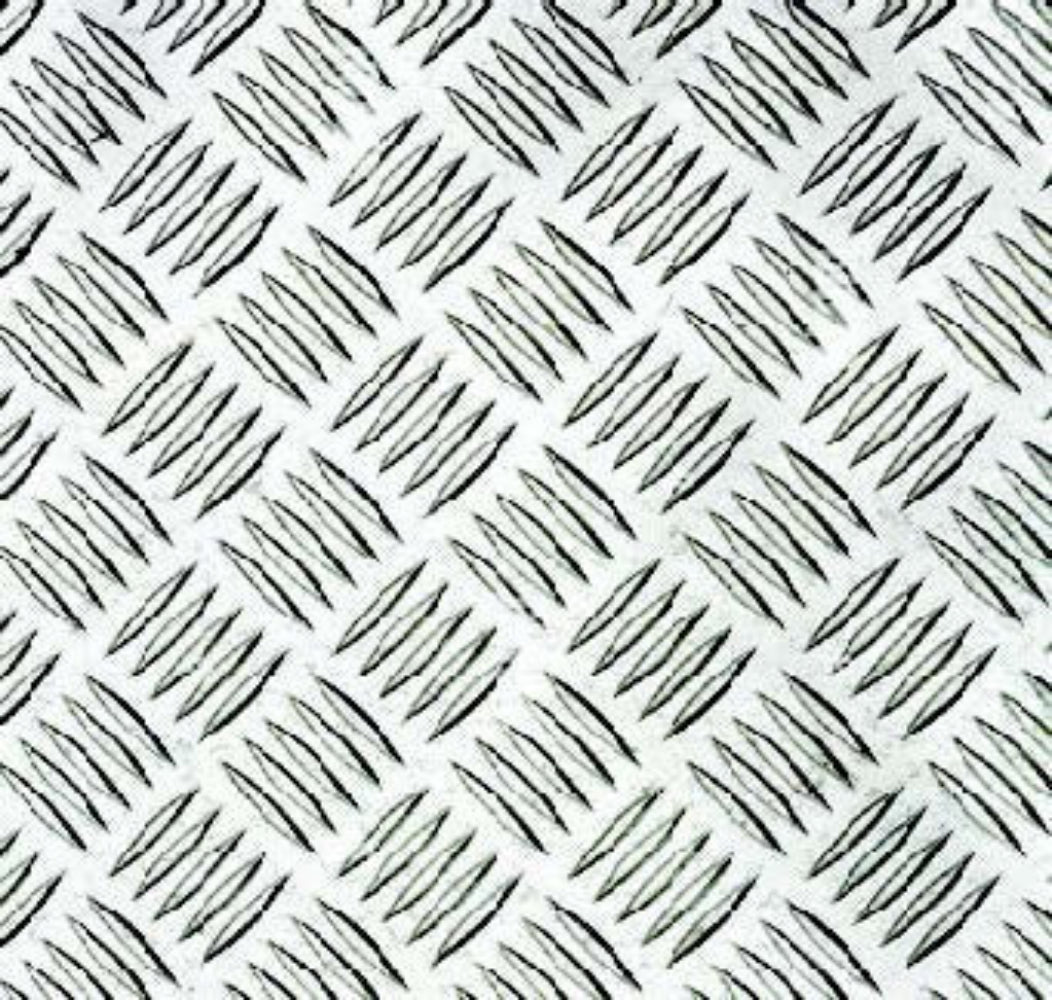

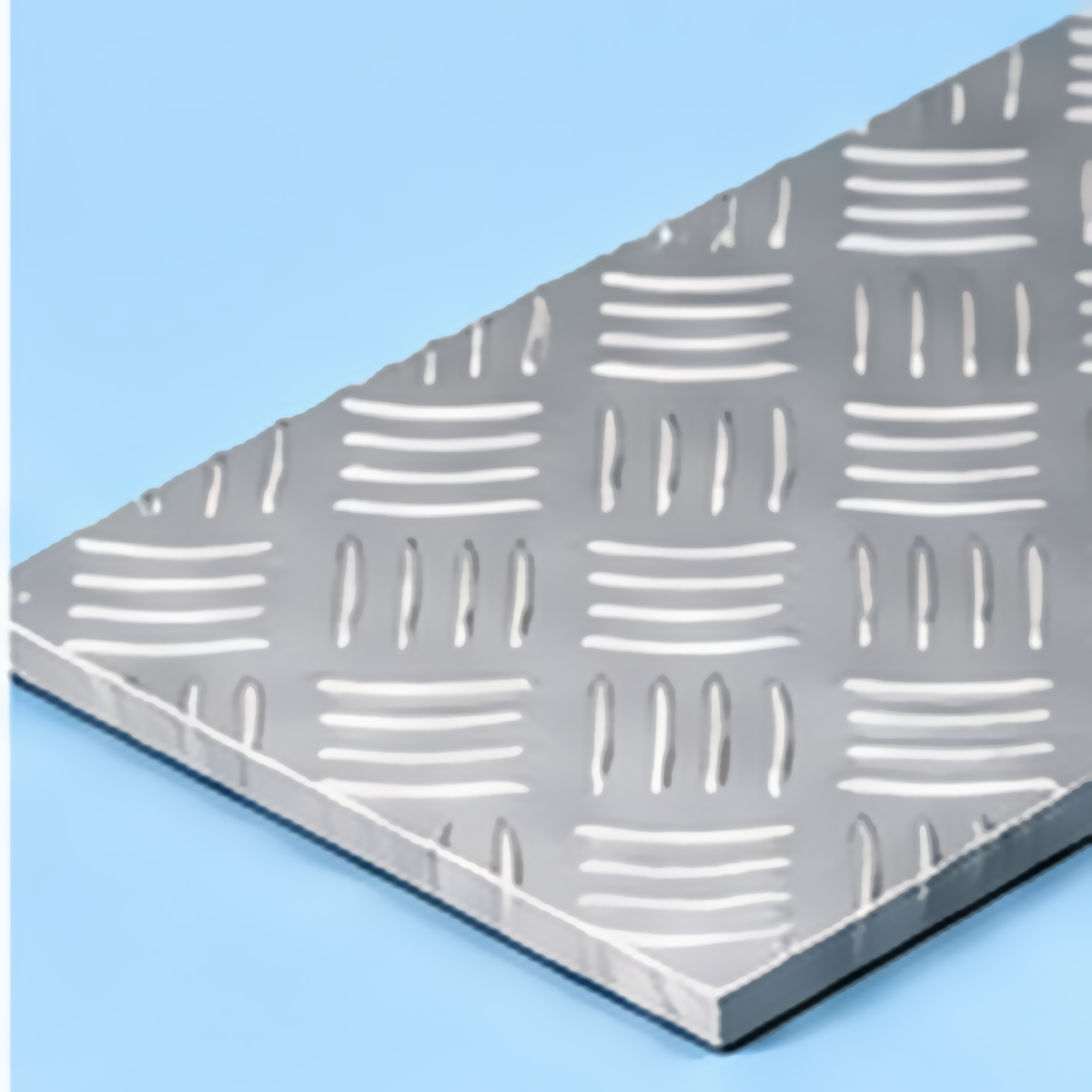

Aluminium 5-bar treadplate (also called checker plate or diamond plate), 5052 alloy, mill finish. The raised 5-bar pattern provides superior anti-slip grip for flooring, walkways, ute and trailer trays, workshop platforms, ramps, and stair treads.

Specifications

• Alloy / Temper: 5052 H32
• Thickness: 3.0mm
• Sheet size: 1500 × 3000mm
• Weight per full sheet: approximately 36.59kg
• Finish: Mill
• Applications: flooring, trays, walkways, ramps, stairs

Cutting service

• Panel saw cut-to-size available — $3.00 per cut (first 5 cuts free)
• Saw kerf: 6mm material loss per cut
• Cut tolerance: ±2.0mm
• Minimum cut piece: 40×40mm
• Maximum cut length: 3600mm
• Cut edges show exposed mill finish — powder coat available on request

PE (polyethylene) surface protection film may be supplied subject to availability. Contact us before ordering if PE protection is critical for your job.

Pickup & delivery — Melbourne

Pickup from our Hallam store: 10 Eastlink Drive, Hallam VIC 3803. Opening hours Mon–Fri 7:00am–4:00pm. Most orders ready same-day or within 1–2 business days. Delivery available across Melbourne and regional Victoria at checkout — rates shown before payment.
