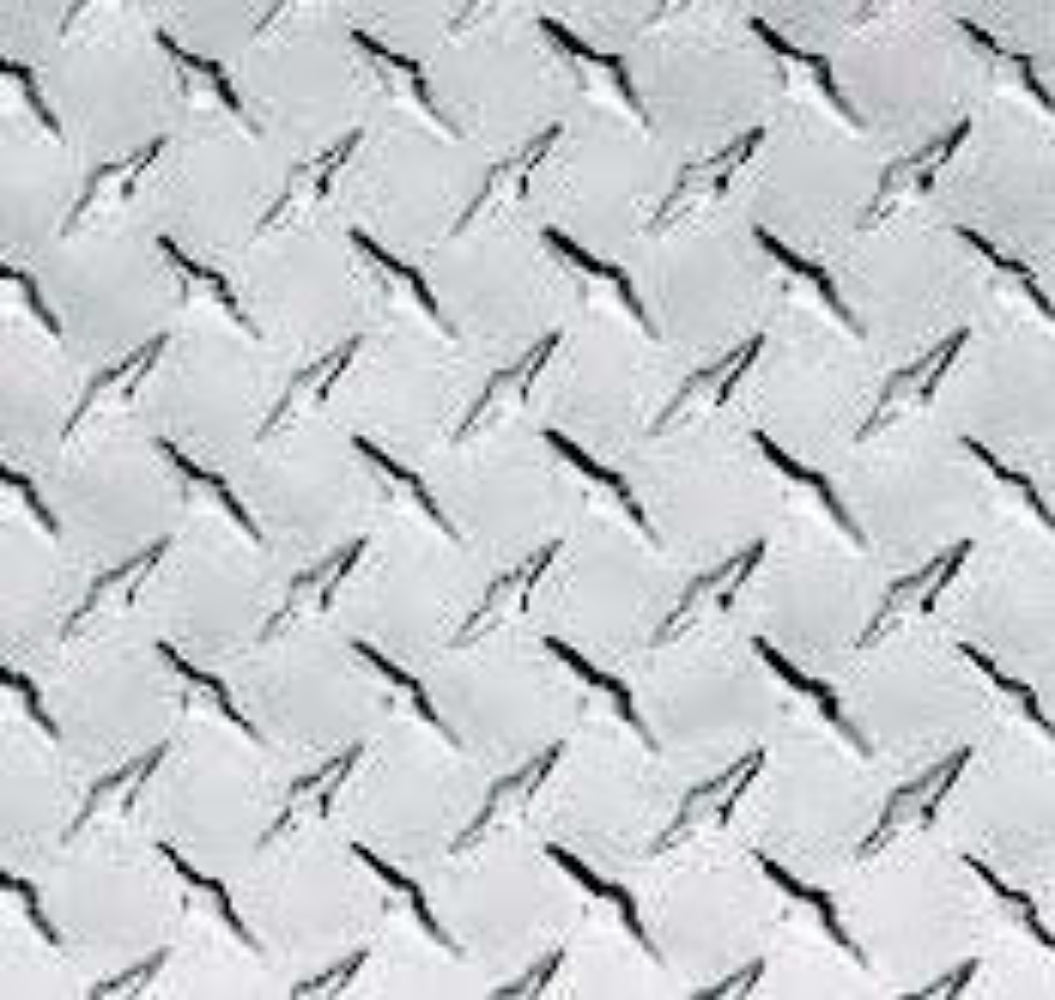

Aluminium Propeller Plate 3003 H22 1.6mm – 1200×2400mm

Aluminium Propeller Plate (1-Bar) 3003 H22 – 1.6mm – 1200×2400mm

1-bar propeller plate, 3003 H22 aluminium alloy, mill finish. A more decorative alternative to 5-bar treadplate with a subtler raised pattern. Commonly used for decorative panels, light-traffic walkways, wall cladding, and feature applications where aesthetic matters.

Specifications

• Alloy / Temper: 3003 H22
• Thickness: 1.6mm
• Sheet size: 1200 × 2400mm
• Weight per full sheet: approximately 12.49kg
• Finish: Mill
• Applications: decorative panels, light traffic, wall cladding

Cutting service

• Panel saw cut-to-size available — $1.00 per cut (first 5 cuts free)
• Saw kerf: 6mm material loss per cut
• Cut tolerance: ±2.0mm
• Minimum cut piece: 40×40mm
• Maximum cut length: 3600mm
• Cut edges show exposed mill finish — powder coat available on request

Pickup & delivery — Melbourne

Pickup from our Hallam store: 10 Eastlink Drive, Hallam VIC 3803. Opening hours Mon–Fri 7:00am–4:00pm. Most orders ready same-day or within 1–2 business days. Delivery available across Melbourne and regional Victoria at checkout — rates shown before payment.
