Specifications
Select the required finish
Setup fee applies once per colour per order.
Cutting after powder coating, anodising, or any other finish will expose raw aluminium edges.
Select your required length and finish.
|
AluCut works out the cheapest combination of the stock lengths we carry, applies this product's minimum order and keeps the offcut down.
+ Add a project or job name
Cutting tolerance is ±2mm. Allow approximately 6mm per cut for blade kerf. Minimum cut piece 40mm.
Dimensions
Description

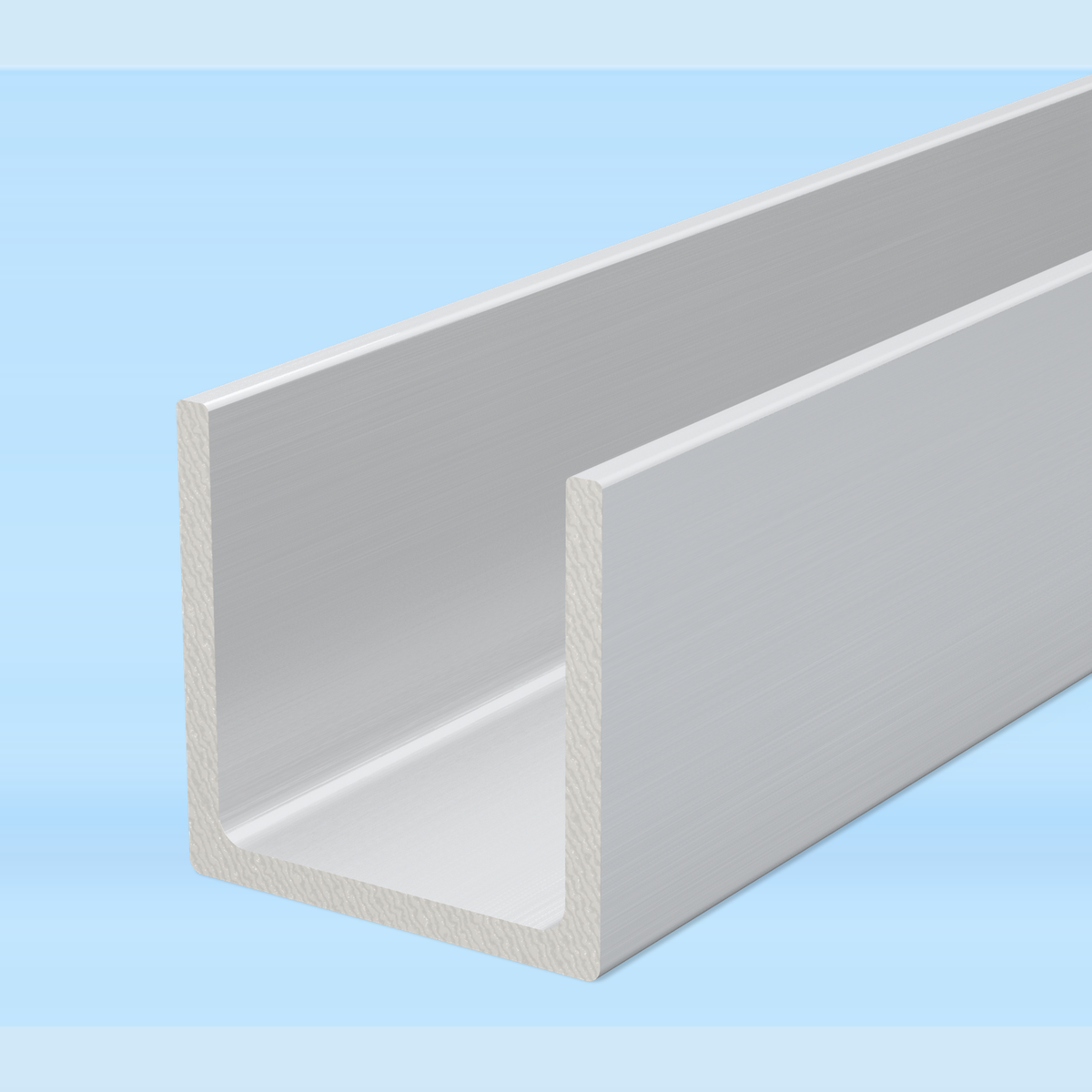

Aluminium channel 12mm × 12mm × 1.6mm wall — 6060 T5 alloy, standard 6.5m lengths, 0.141 kg/m. Internal opening 8.8 × 10.4mm. Versatile U-profile used for sliding tracks, cable management, small frames, brackets, furniture and architectural detail work.

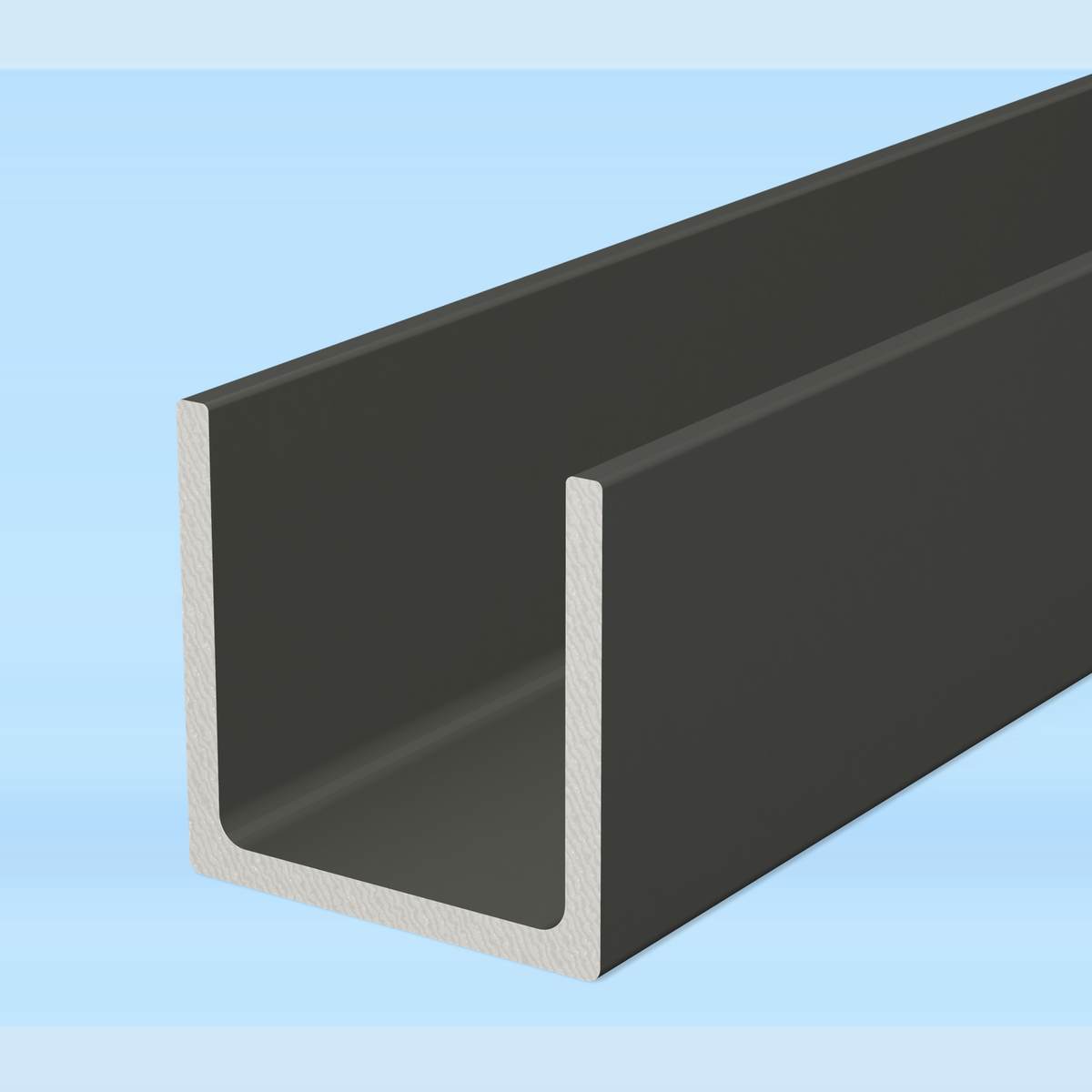

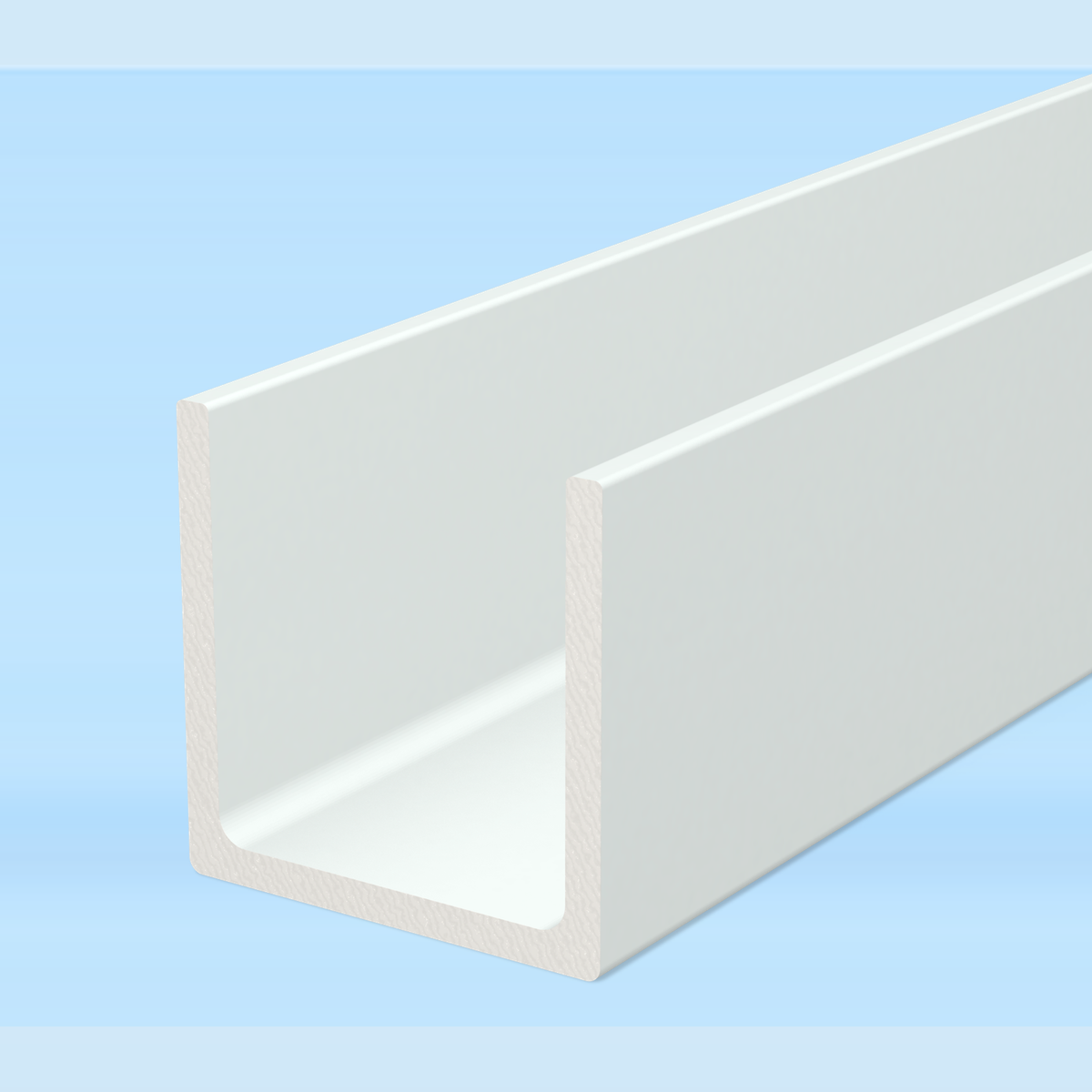

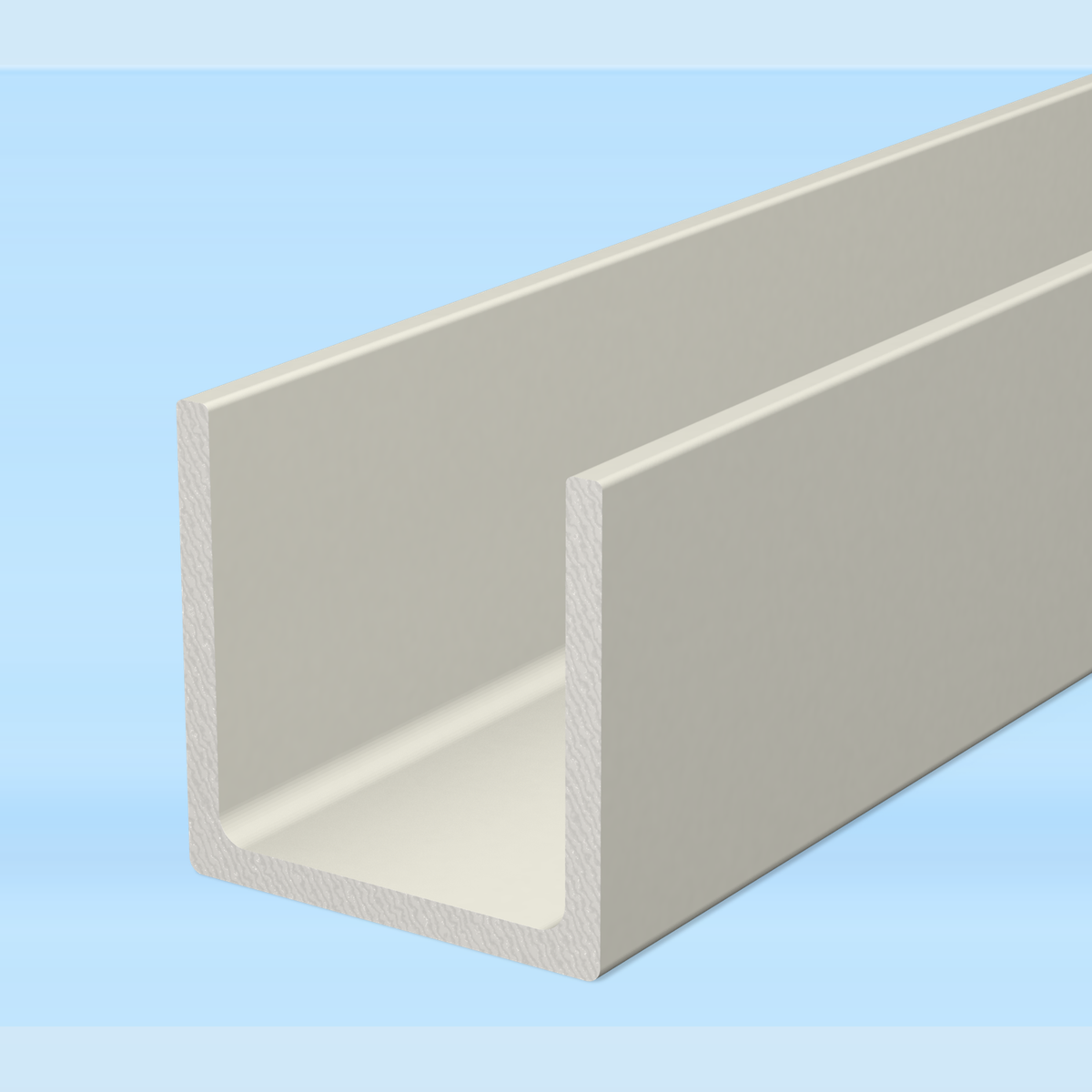

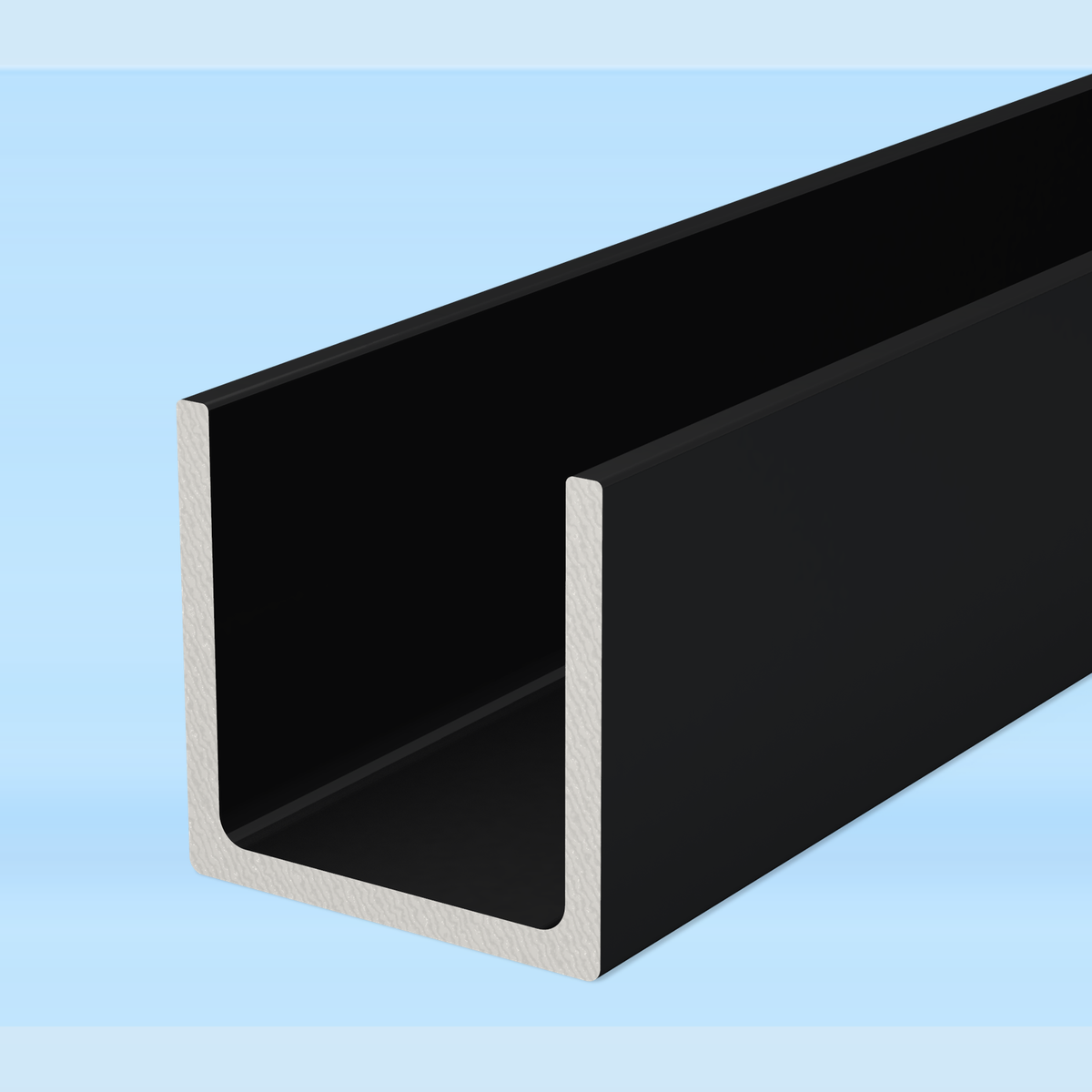

Available in mill finish. Also stocked in Clear Anodised and Black Powder Coat — full lengths only, ready 1–3 days. Custom powder coat available in Monument, Surfmist, White Pearl and Woodland Grey — full lengths only, 2–3 week lead time.
Available as full 6.5m lengths or half lengths (3.25m). For custom cut lengths, order via our collection table. Cut to size in Melbourne — pickup from Hallam VIC, delivery across Melbourne, or freight on quote. View in our product catalogue →
